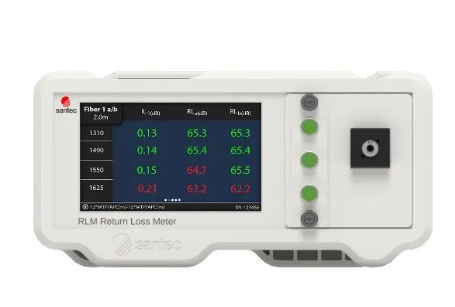

With the rapid advancement of fiber optic communication technology, the accuracy and efficiency of test equipment have become crucial, which are directly related to the stability and reliability of the network.Santec has launched a new generation of Insertion Return Loss Tester, RLM-100, which effectively simplifies the test process and significantly improves the work efficiency through user-friendly design and innovative detector technology.RLM-100 provides an ideal solution for fiber optic testing in both production environments and laboratory research, with its excellent performance and reliability. The RLM-100 provides the ideal fiber optic testing solution for both production environments and laboratory research with its excellent performance and reliability.

Product Features

1. Optimized Hardware, Double Leaps in Speed and Accuracy

The RLM-100 features revolutionary optimization of key hardware, which not only ensures high measurement accuracy, but also increases test speed to twice that of other industry solutions.

2.Patented Calibration Technology for Ultra-High Accuracy Measurements

Santec's unique patented calibration method allows RLM-100 users to calibrate the device on their own, while the standard mode provides higher measurement accuracy, realizing single-mode return loss measurements of up to 85dB.

3. User-friendly design to enhance the operation experience

Equipped with a front panel touch screen and user-friendly software interface, the RLM-100 provides an intuitive and convenient operating experience, whether on a busy production line or in a sophisticated laboratory environment.

4. Innovative detector design improves multi-fiber testing efficiency

The innovative integrating sphere detector design can measure up to 72 channels of MTP/MPO and duplex LC connector loss through a single connection, which greatly improves the convenience and efficiency of multi-fiber connector testing.

5. Patented adapter to simplify the test process

The patented SD sliding detector adapter, with its ultimate ease of use, brings significant convenience to fiber optic connector testing and further enhances the user experience.

Application Direction

IL and RL testing of fiber optic cable assemblies: comprehensive coverage of single-fiber and multi-fiber testing needs.

Wide wavelength coverage: supports single-mode 1310nm, 1490nm, 1550nm, 1625nm and multimode 850nm, 1300nm testing.

Quality assurance and R&D testing: provides strong support for product development and quality control.
